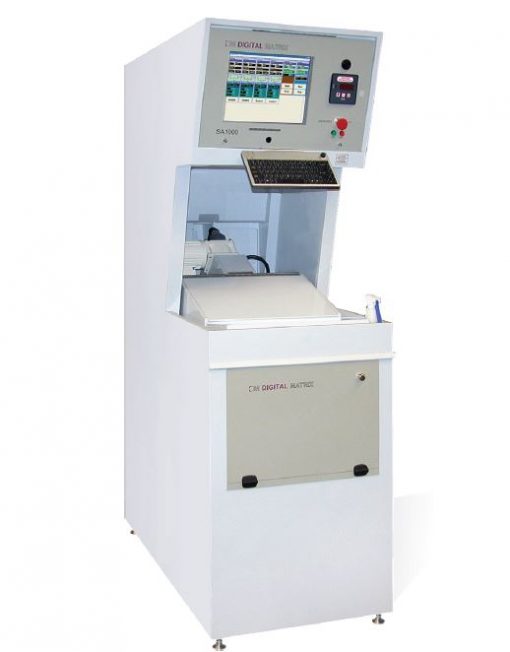

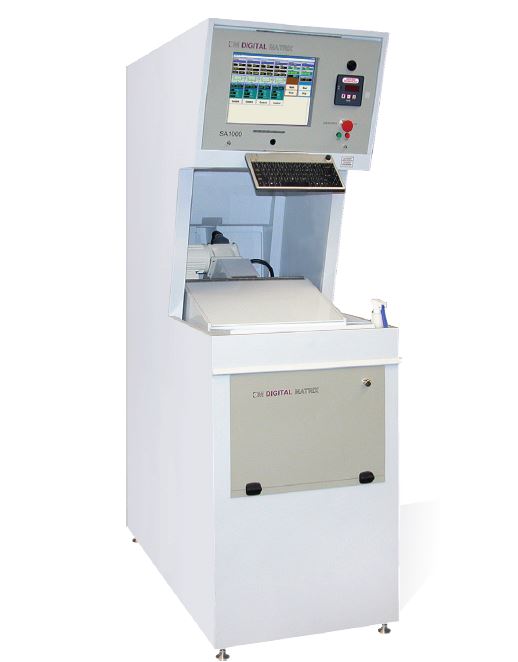

Description
- Small footprint
- Integrated pump/filtration (independent on multi-cell models)
- Adjustable cathode head and work holder for precise control of thickness variation
- Front access for simplified maintenance
- Integrated all-in-one design including sump and electronics
- Enclosed work area for process control
- Industrial PC control with large flat panel display
- Switch mode rectifier with 1-year warranty
- User-friendly operator interface
- All digital control system
- Can be built to requirements for multiple production cells

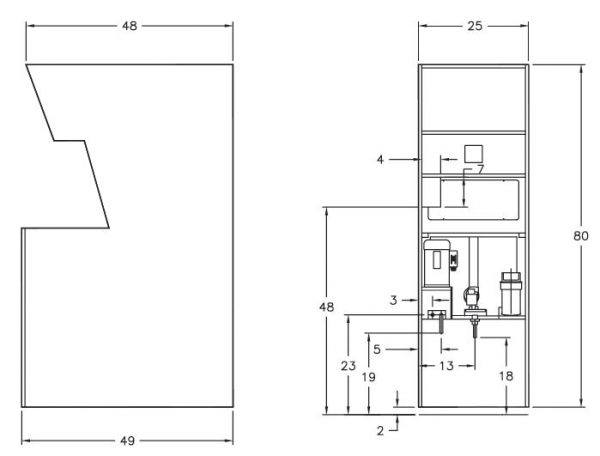

| Dimensions | Height 80 in (2032 mm) Width 25 in (635 mm) Depth 49 in (1245 mm) |
| Total Solution Volume | 45 gallons (170 liters) |
| Heaters | 2 kW |
| Cells | 1 |
| Pump | 20 VDC, 76 AMS (higher current available) switch mode, digital control |
| Filtration | 2 stage |
| – Pre-filter | 2 to 5 micron DOE or SOE |
| – Final filter | 0.2 to .045 micron DOE or SOE |
| Flow | 50-liters max (adjustable) |
