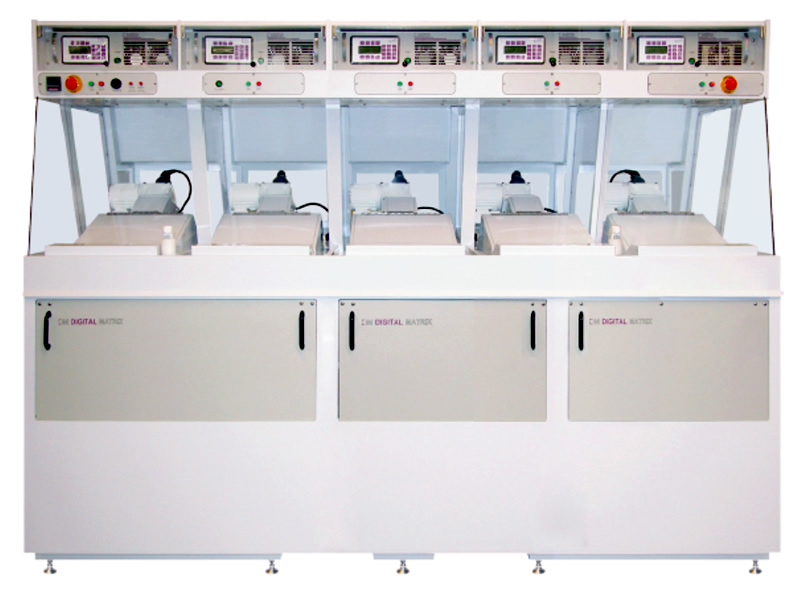

SA-B Series Single & Multi-Cell Rotational Plating System

Description

Compact, small footprint
Optional wheels for portability available
Exclusive adjustable cathode head and work holder for precise control of thickness variation (TTV)
Front access for simplified maintenance
Integrated all-in-one design, sump and electronics
Enclosed work area for process control
Switch mode rectifier (power supply)
User-friendly operator interface
All digital control system
Plate Ni, Cu, Au, Alloys and other metals

Contruction	Polypropylene

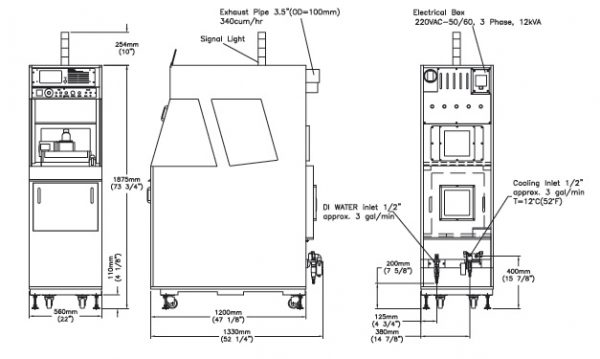

Dimensions	Width: 22 in (560 mm) Height: 73.75 in (1875 mm) Depth: 52.25 in (1330 mm)
Total Solution Volume	45 gal (170 liters)
Heaters	2 kW
Cooling	Titanium cooling coil
Cells	1
Pump	1 hp
Rectifier	Standard: 65 Amps 24 VDC Optional: Reverse pulse plating (specify range)
Cathode	Rotational: 0-60 rpm Motor: 1/4 hp washdown Commutator: 250 amps max.
Filtration (2 stage)	Pre-filter:5 micron DOE 20 in Final filter: 0.45 micron DOE, 20 in
Flow	50-lpm max (adjustable)
Work Holder	Various applications and holders available
Instrumentation	Flow: Paddle wheel flow sensor Temperature: +/- 1 degree C dual setpoint
Utilities	Electrical: 220 VAC, 3-phase, 12 kVA, 50/60 Hz (US) DI Water: Hose barb 1/2 in NPT male, 11 lpm Cooling: 19 lph, pressure 45-60 psi, temp = 12°C (52°F)s

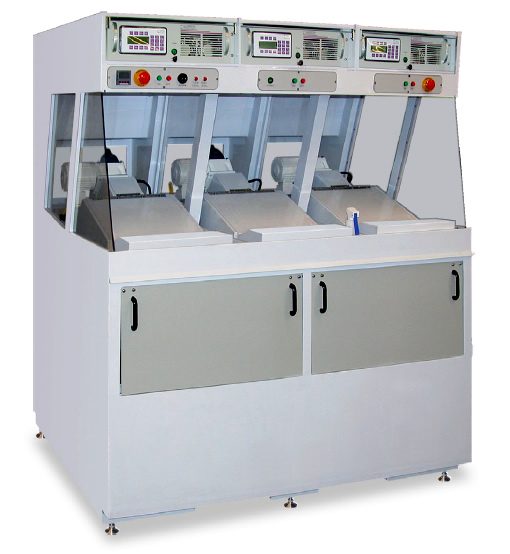

Contruction	Polypropylene

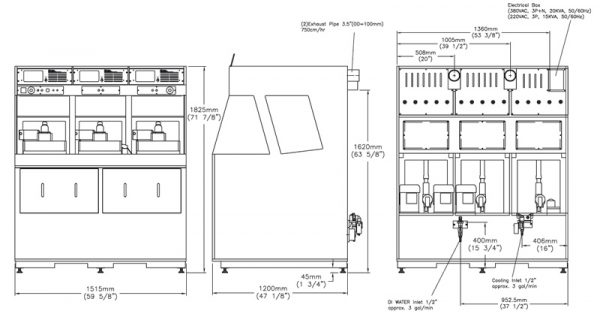

Dimensions	Width: 59 5/8 in (1515 mm) Height: 71 7/8 in (1825 mm) Depth: 47 1/8 in (1200 mm)
Total Solution Volume	130 gal (500 liters)
Heaters	6 kW
Cooling	Titanium cooling coil
Cells	3
Pump	3/4 hp per cell
Rectifier (per cell)	Standard: 65 Amps 24 VDC Optional: Reverse pulse plating (specify range)
Cathode	Rotational: 0-60 rpm Motor: 1/4 hp washdown Commutator: 250 amps max.
Filtration (2 stage per cell)	Pre-filter:5 micron DOE 20 in Final filter: 0.45 micron DOE, 20 in
Flow	50-lpm max (adjustable)
Work Holder	Various applications and holders available
Instrumentation	Flow: Paddle wheel flow sensor Temperature: +/- 1 degree C dual setpoint
Utilities	Electrical: 220 VAC, 3-phase, 15 kVA, 50/60 Hz (US) DI Water: Hose barb 1/2 in NPT male, 11 lpm Cooling: 19 lph, pressure 45-60 psi, temp = 12°C (52°F)s
