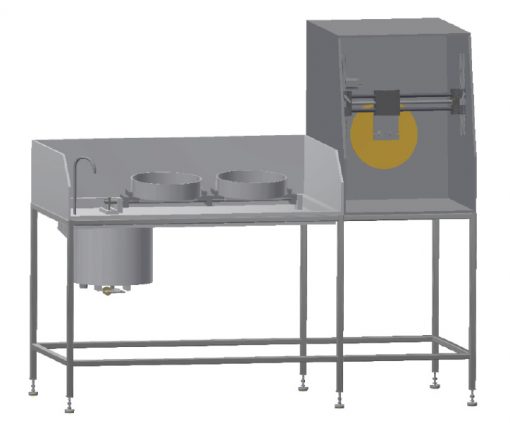

VLSS-1000 Vinyl Lacquer Silvering Station

The Digital Matrix Silvering Station provides a compact, efficient, and easy to operate tool for applying a thin silver layer to the source vinyl (lacquer) disk prior to nickel plating. This is a key process point that provides a thin metal substrate base upon which to “grow” the nickel layer that will form the final stampers.

View, download or print VLSS datasheet (pdf)

Description

Features

– Rugged Operator Friendly Design
– Durable Polypropylene Construction
– 60 rpm Adjustable Rotation Spindle
– Twin nozzle spray gun
– Two supply bottles with tubing
– Chemical Overspill Containment System
– Semi-Enclosed Clean Working Area
– Air Extraction Ready
– Lighted Work Area

Specifications

Dimensions

Length                23 in.
Depth                  36 in.
Height                 78 in.

Construction

Shell Material    Polypropylene
Plumbing           Polypropylene/PVC

Electrical Input
Voltage                110 to 125 VAC
Current                5 A max.

Electrical Input
Voltage                110 to 125 VAC
Phase                  1
Freq.                    50/60 hz.
Current                5 A max.

View, download or print VLSS datasheet (pdf)
